Overview of a production line in cross section – your manufacturing plant dashboard with Softing

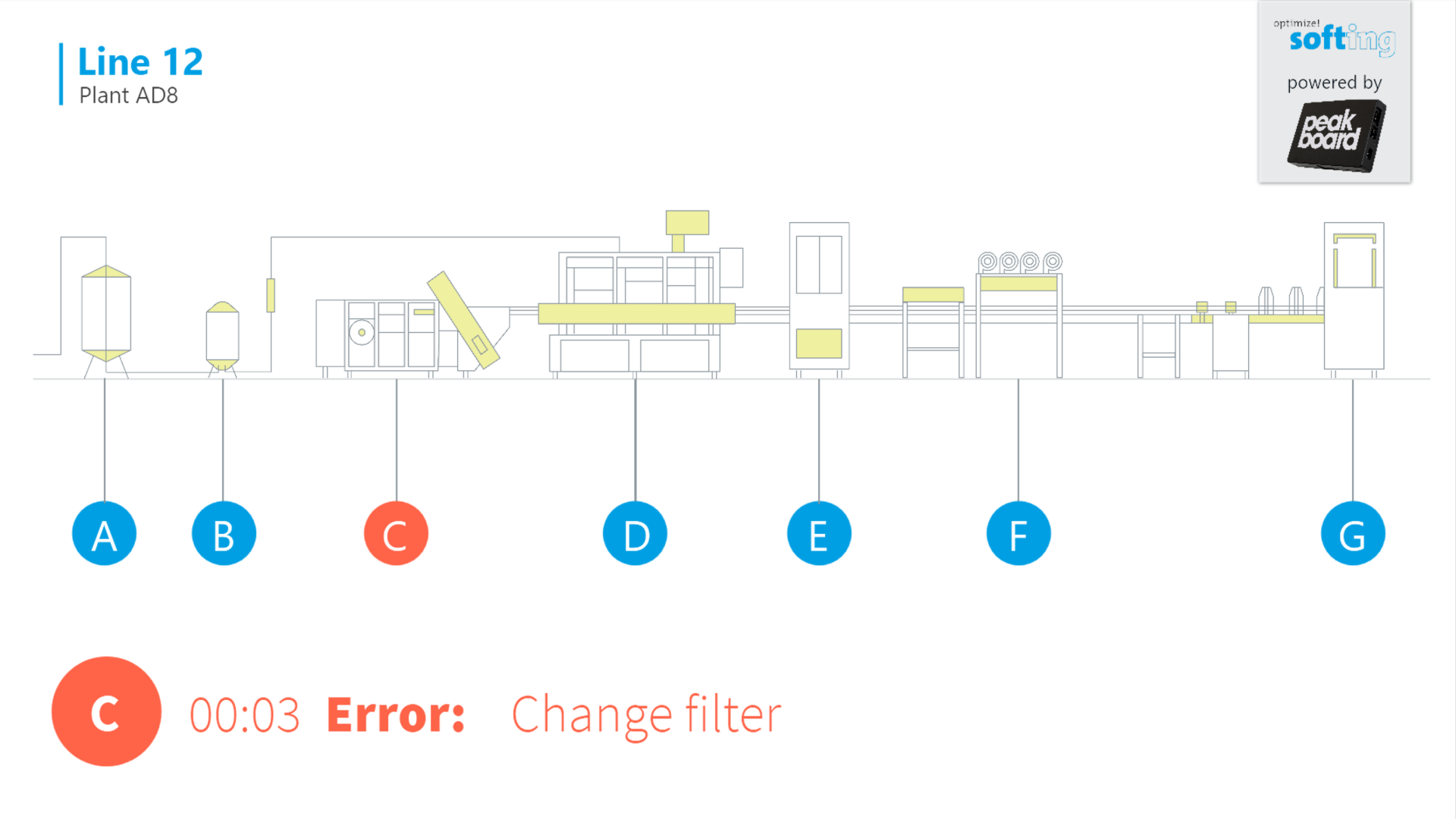

This template provides a digital overview of an entire production line in manufacturing and ensures greater transparency in the workplace. The background image of this dashboard is a generic drawing of the machine, allowing individual work steps to be highlighted. This enables the current status of various work steps to be displayed, and any errors can be resolved more quickly, thereby increasing efficiency on the shop floor and significantly simplifying monitoring and maintenance of the system. Download the template directly and easily connect your individual data sources!

Possible Data Sources

This template uses OPC UA as the source of machine data. Therefore, it is ideally suited for integration with the solution from Softing. The OPC UA server from Softing captures and standardizes data from a wide range of PLC manufacturers and collects it centrally. Especially for larger production environments, an OPC UA server proves to be extremely beneficial, as it minimizes the demand load by allowing Peakboard to access only the central server instead of individual machine controls.
